All stock codes associated to this product
N31502G32SW10/WAU, N3150-2G32SW10/WAU
The World's First NUC Mini PC with a USB Type-C Port

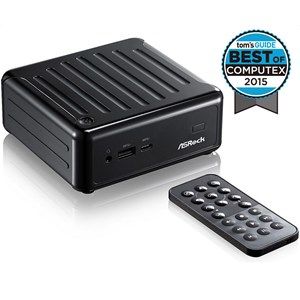

The design concept of ASRock Beebox originated from one of the most
common insects – Bees. By squeezing a cutting edge Intel N3000 Series
SoC powered motherboard and other peripherals into a compact chassis,
Beebox is small, fast, hard working just like a bee, all but the
distracting buzzing noise.
One Size Fits All
A home theater system for your living room that’s also quiet enough for your bedroom, and powerful enough for a daily computing PC
Home Theater PC
Bedroom PC
Office Desktop
A miniature PC for office tasks, stock monitoring, educational purposes or even digital signage. Makes your business bloom in no time.
Commercial
Government
Education
Digital signage
Industrial PC (Digital Signage)
Unique Features
Three Graphics Outputs & 4K Playback
Triple Monitor
Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
This DisplayPort only supports DP to D-Sub dongles. DP to HDMI dongles and DP to DVI dongles are not supported.
To power up three monitors, please connect your monitors to 2*HDMI and 1*DP ports or 2*HDMI and 1*D-Sub ports via a DP to D-Sub dongle.
4K Support
The only system in the segment that supports dual channel memory for supporting 4K video playback.
Dual channel memory is required for 4K video playback. Please install a pair of identical memory DIMMs.
Supports Up to 48CH H.265 IP Cameras
Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704x576) resolution.
Swift Data Transfer and Device Charging – Type-C USB
The World's First NUC with a USB Type-C Port
USB Type-C doubles the charge speed!
The Fastest Wireless Internet – 802.11ac WiFi
Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module and also works as a wireless access point. With Intel® Ready Mode Technology (RMT), Beebox may remain silent, display off, but still actively receive incoming emails, updates, social media alerts, and continue to serve as a wireless access point while minimizing power consumption.
Quiet Design
A special design that produces absolutely zero noise.
Remote Controller
A free bundled remote controller for Beebox.
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
Specifications
|
|---|
| Accessories |
1 x Remote Control, 1 x 36W/12V Adapter, 1 x VESA bracket |
| Audio |
Realtek ALC283 |
| Chipset |
Intel® N3150 SoC |
| Colour |
White |
| Dimension |
110mm (W) x 46mm (H) x 118.5mm (L) |
| Graphics |
Intel® HD Graphics |
| I/O |
Front I/O: 1 x USB 3.0, 1 x USB 3.0
(Type C), 1 x IR, 1 x Audio-out with MIC-In; Rear I/O: 2 x HDMI*, 1 x
DP*, 2 x USB 3.0, 1 x LAN |
| LAN |
10/100/1000 Mb/s |
| Memory |
2GB DDR3L-1600MHz, Supports DDR3L 1600MHz, 2 x SO-DIMM slots, Max. 16GB |
| OS |
Windows® 10 Home |
| Processor |
Intel® Quad-Core Processor N3150 1.60 GHz (Up to 2.08 GHz Turbo) |
| Storage |
32GB eMMC - Supports 1 x 2.5" SATA HDD & 1 x mSATA slot |
| VESA |
Supports 75 x 75 and 100 x 100 mm |
| Warranty |
3 Years |
| Wireless |
802.11ac + BT 4.0 |
